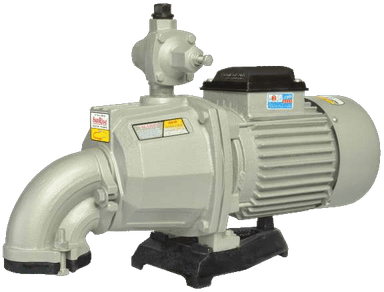

Deep Well Injector Pumps
Coupled self-priming pumps for deep well applications up to 150 ft. Ideal for domestic and agricultural water lifting.
| Image | Model Code | Name | Size | HP | Volts | Amps | Max Suction | Head (ft) | Discharge (L/m) | Details |
|---|---|---|---|---|---|---|---|---|---|---|
 | P-Code 101 | Deep Well Injector Pump 0.75HP | 1.5" × 1" | 0.75 HP | 220V | 3A | 40 ft | 131 ft | 40 L/m | View → |
 | P-Code 111 | Deep Well Injector Pump 1HP | 1.5" × 1" | 1 HP | 220V | 4A | 50 ft | 164 ft | 50 L/m | View → |
 | P-Code 121 | Deep Well Injector Pump 1HP (1.5"×1.25") | 1.5" × 1.25" | 1 HP | 220V | 4A | 50 ft | 180 ft | 60 L/m | View → |
 | P-Code 131 | Deep Well Injector Pump 1.5HP | 1.5" × 1.25" | 1.5 HP | 220V | 6A | 60 ft | 213 ft | 75 L/m | View → |
| P-Code 141 | Deep Well Injector Pump 2HP | 2" × 1.5" | 2 HP | 220V | 8A | 80 ft | 246 ft | 90 L/m | View → |
| P-Code 154 | Deep Well Injector Pump 3HP | 2" × 1.5" | 3 HP | 220V | 10A | 100 ft | 295 ft | 120 L/m | View → |
* Specifications are typical values. Contact us for confirmed technical data sheets.
